CT8268-DC
■External ports support hard IO control and various bus controls (configure according to site requirements).
■It is designed with functional modules, mainly including two functional modules: cap removing and cap installing. Each functional module is relatively independent and will not affect each other, thus effectively improving the adaptability, reliability and flexibility of the equipment.
■The uncapping module is equipped with two forward and reverse cap removing wheels, which can remove the electrode caps of the movable arm and fixed arm of the welding tongs respectively, without loosening certain threaded electrode rods of the welding tongs, thereby ensuring the reliability and stability of the welding system.
■It is equipped with rich sensor system, each action command coordinated with the welding tongs and robot has confirmation feedback, ensuring the reliability and stability of the automatic system without
human supervision.
■It features scientific and reasonable design, and is strictly made of quality materials, and the purchased parts are from international and domestic first-line brands to ensure the quality and reliability of the machine, which provides strong support for the unmanned automatic welding system.

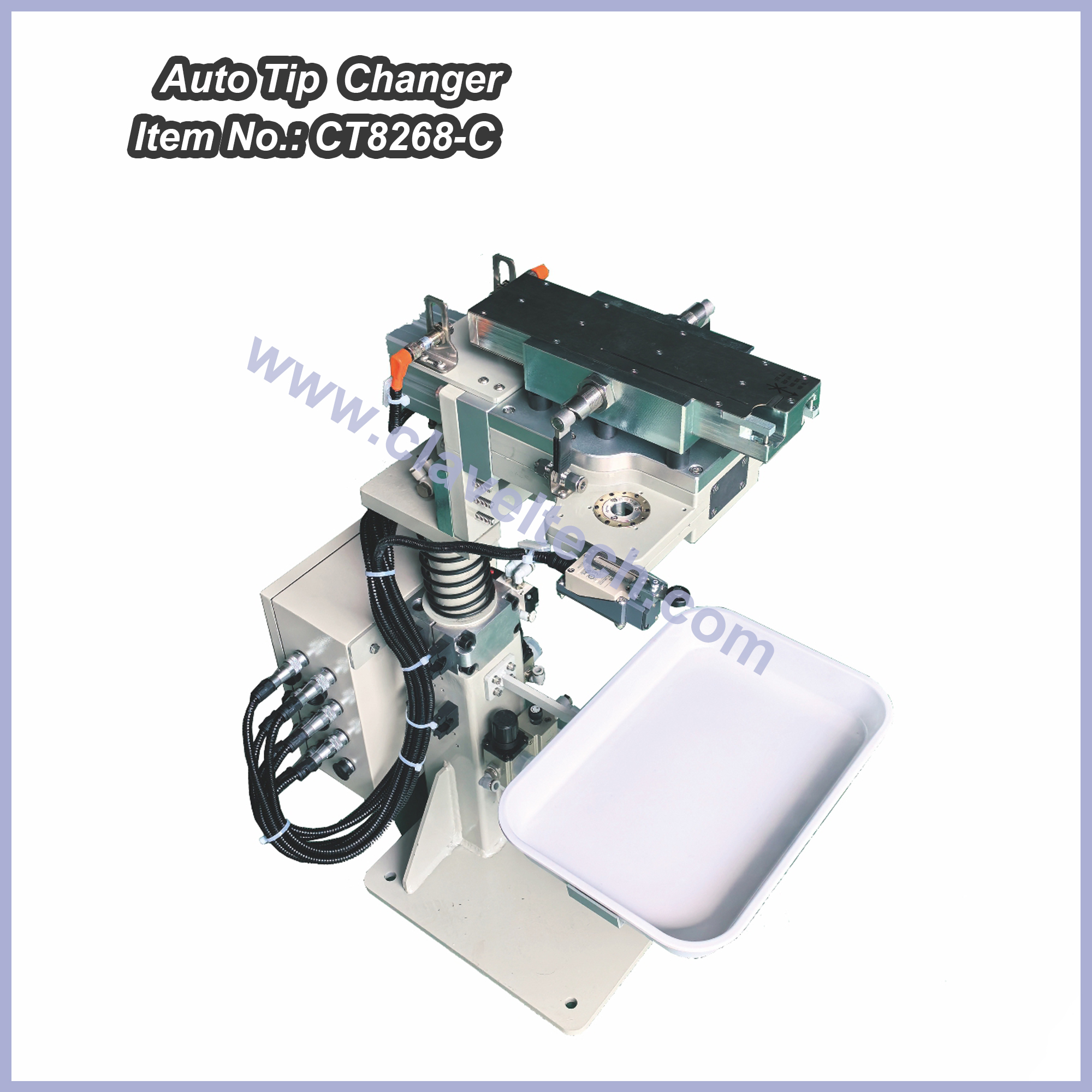

Technical parameters of CT8268-C series Auto Tip Changer
|
Model
|
CT8268-C
|
|
Rated input voltage
|
AC 380V 3PH 50HZ
|
|
Input air source
|
0.4-0.6MPa oil-free compressed air
|
|
Control and feedback signal
|
DC24VPNP/NPN optional
|
|
Electrode size
|
13-20mm
|
|
Number of clip electrode caps
|
10 pairs in total
|
|
Dimensions
|
500*480*815mm
|
|
Weight
|
60KG
|
|
|
